Description

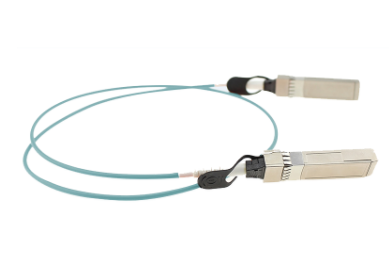

SFP28 Active Optical Cables are direct-attach fiber assemblies with SFP28 connectors. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks.

25G SFP28 AOC is a single-Channel, Pluggable, Fiber-Optic SFP28 for 25 Gigabit Ethernet and Infiniband EDR Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 25.78125 Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 20 contact edge type connector.

 Features

▪ Hot-pluggable SFP28 form factor

▪ Supports 25Gbps data rate

▪ Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF

▪ 850nm VCSEL laser and PIN photo-detector

▪ Internal CDR on both Transmitter and Receiver channel

▪ Single 3.3V power supply

▪ Power dissipation < 1W

▪ Digital diagnostics functions are available via the I2C interface

▪ RoHS-6 compliant

▪ Commercial case temperature range: 0°C to 70°C

 Applications

▪ 25GBASE-SR Ethernet
