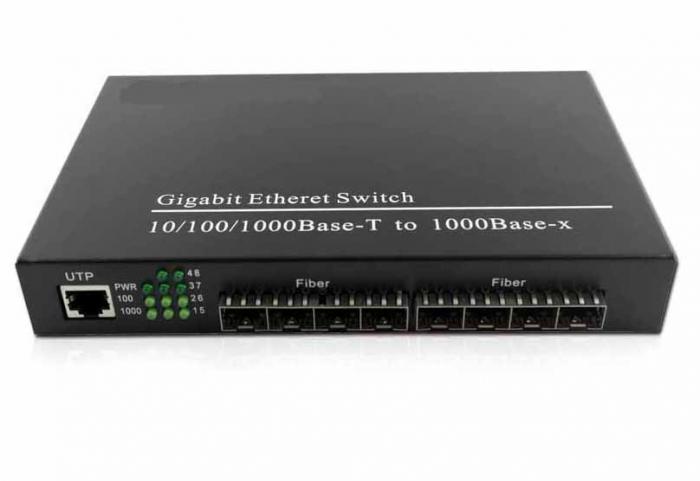

Product Description
Features
▪Often used in series or cascade network
▪Card-type or Stand-alone type for your choice; suitable for concentration management in 2U Racks
▪Broadcasting filtration function, automatic recognizing and modifying address with Store-and-transmission operational mechanism
▪Cache size for 512KB, address table size is 4KB
▪Ethernet 10base-t or 100Base - TX 100Base - FX fiber media transition
▪Supporting IEEE802.3, IEEE802.3U, IEEE802.3X, IEEE 802.3z/AB, IEEE802.1d
▪Supporting full duplex flow control or half duplex back-pressure flow control, with auto negotiation function
▪Electricity support 1000Mbps,100Mbps, both ends can use different speed (full-duplex work bandwidth for line-speed 2XMbps)
▪Provide a link loss diagnosis, electric link and light links diagnosis, dynamic data transmission, full-duplex/half-duplex, speed indicator
▪Provide double RJ-45 electrical automatic cross connection, connect switchboard, concentrator
▪Optical fiber interface properties is good, good compatibility and high reliability
▪Provide complete after-sales service and five years for maintenance services
Applications
▪Intelligent transportation supervisory system(ITS)
▪ High-speed Way supervisory/Tele-Communication System）
▪Large corporations, network security monitoring system, multi-function system
▪Intelligent transportation supervisory system(ITS)
▪ High-speed Way supervisory/Tele-Communication System）
▪Large corporations, network security monitoring system, multi-function system
▪Long-distance Multi-media Schooling, Campus monitoring, long-distance broadcast television transmission system
Technical parameter
Network Media |
10Base-T or 100Base-TX or 1000Base-TX to 1000Base-FX |
Forwarding Mode |
Store-And-Forward Architecture |
Ethernet Rate |
10/100M or 10/100/1000M |
Network Protocol |
IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
Optical Fiber |
Dual fiber or Single fiber |
Optical Distance |
0~120km |
Power Supply |
DC5V1A or 5V2A |
Power Consumption |
3.5 w (Input:DC5V 1000mA) |
Lightning Protection |
Multi-level protection (3000V) |
Working Environment |
0~70℃ |
Certification |
CE,FCC,RoHS, ISO9001 |
