Product Description

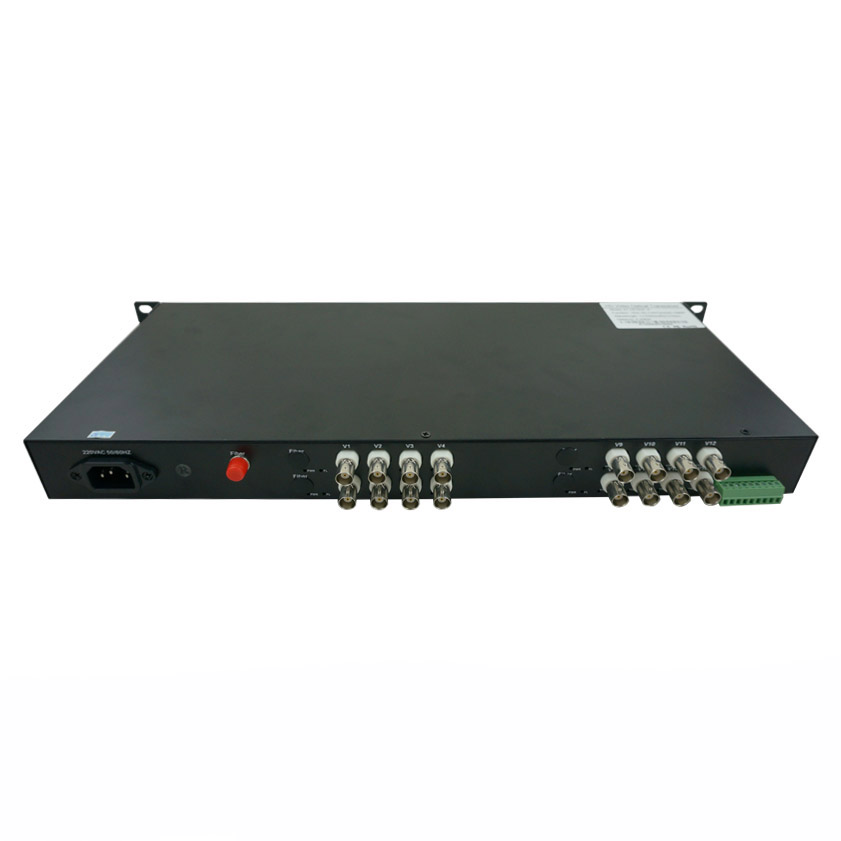

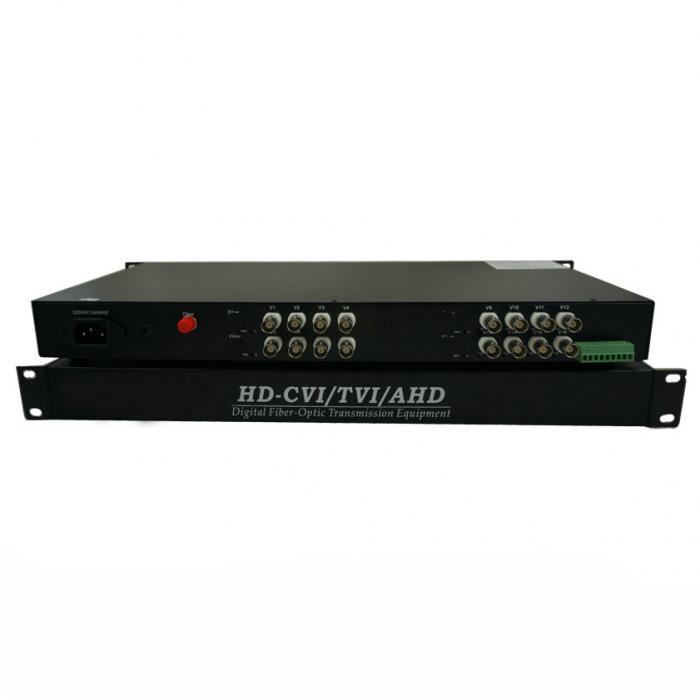

HD-TVI/CVI/AHD Video Converter 1080P
HD Video Converter can simultaneously transmit 16 channels HD-TVI/CVI/AHD over one multi mode or single mode optical fiber.
Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.
Devices are available for either standalone or rack-mount installation,which is suitable for different working environment.
Features
•Self-adaptive output HD-TVI/CVI/AHD signal
•Loss-less real time non-compression transmission
•LED indicators
•Fully enclosed dust-proof design
•For Bullet cameras, no control function
•1080P resolution
Specifications
Optical
Wavelength |
1310nm/1550nm |
Output Power |
-8~0dBm |
Optic fiber |
50/125u,62.5/125u multi mode,9/125u single mode |
Rx sensitivity |
-25dBm |
Optical connector |
FC/ST/SC (optional) |
Distance |
0~2KM (MM) / 0~100KM (SM) |
Video
Number of Channels |
16 |
Input/output impedance |
BNC 75Ω (unbalance) |
Standard video input/ output voltage |
1.0Vp-p |
Video Bandwidth |
45MHz |
Sampling Bandwidth |
10bit |
Sampling Frequency |
108MHz |
Rise and Fall time |
<0.8ns |
Optical Signal Intrinsic Jitter |
<0.2 UI |
Differential Gain |
< ±1.5% |
Differential Phase |
< ±1° |
Connector |
BNC |
Other
Power |
AC110/220V |
Power Consumption |
≤6W |
Temperature |
0ºC ~70ºC |
Humidity |
10%~90% RH |
Installation |
Wall-mounted |
MTBF |
≥ 100000Hours |
| Dimension | 490*195*45mm |
16Channel HD-TVI/CVI/AHD/Analog 4in1 Video to Fiber Transmitter and Receiver
| Model | Description |
| BNT-HD16VF-T/R | 16ch HD-TVI/CVI/AHD Video, 1080P, single fiber, single mode, FC, 20km |
| BNT-HD16V1DF-T/R | 16ch HD-TVI/CVI/AHD Video, 1ch Reverse RS485 Data, 1080P, single fiber, single mode, FC, 20km |
