Introduction

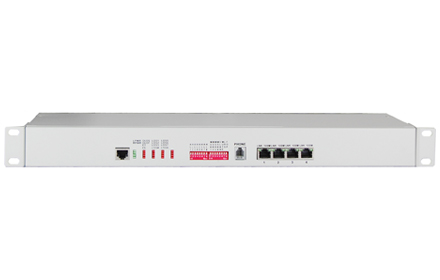

This device  provides 1-8Channel E1 interface, 1-4Channel 10M/100M Ethernet interface (Line Rate 100M) and 2 expansion interface. 4Channel Ethernet interface is switch interface, can support VLAN. 1 expansion interface can be used as the transmission channel of RS232/RS485/RS422 asynchronous data, voice signal, 2/4 line E&M audio signal, switch signal, Ethernet signal (Bandwidth 2M). It is very flexible. It has alarm function. The work is reliable, stable, and low power consumption, high integration, small size.

Features

◆ Based on self -copyright  IC

◆ Modular wide dynamic optical detector

◆ Ethernet interface rate is 10M/100M, half/full duplex auto- adaptable

◆ E1 interface comply with G.703, adopts digital clock recovery and smooth phase-lock technology

◆ 1Channel PCM digital business phone (optional)

◆ When optical lose signal,it can detect the remote device is power off or fiber is disconnected,and indicates alarm by LED

◆ The local device can view the remote device working condition

◆ Provide command the remote interface Loop Back, ease line maintenance

◆ The transmission distance is up to 2-120Km without interruption

◆ AC 220V, DC-48V, DC24V can be optional

◆ DC-48V/DC24V power supply polarity detection function, Polarity-Free

Parameters

◆  Fiber

    Multi-mode Fiber

    50/125um, 62.5/125um,

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

    Single-mode Fiber

    8/125um, 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

◆  E1 Interface

    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;

    E1 Impedance:             75Ω (unbalance), 120Ω (balance);

    Jitter tolerance:            In accord with protocol G.742 and G.823

    Allowed Attenuation:   0~6dBm

◆ Ethernet interface (10/100M)

    Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

◆  Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

◆ Dimension

   Product size:   19 inch 1U, 485 X138 X45 mm(WXDXH)

   Simple packaging: 522X198X82mm( WXDXH)

   Piece weight:  2.5KG

◆  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)
