Introduction

This device has the console control ，provides the 1+1fiber path protection ,point to point optical transmission, LCD display , on the basic of our company development of the PDH optical transmission, use the special VLSI and the SNMP NMS.The device provides 1-16Channel E1 interface, 1-4Channel 10M/100M Ethernet interface (Line Rate 100M) and 2 expansion interface. 4Channel Ethernet interface is switch interface, can support VLAN. 2 expansion interface can be used as the transmission channel of RS232/RS485/RS422 asynchronous data, voice signal, 2/4 line E&M audio signal, switch signal, Ethernet signal (Bandwidth 2M). It is very flexible. It has alarm function. The work is reliable, stable, and low power consumption, high integration, small size.

Features

ØProvides 16 E1 transparent transmission;

ØWith char 16*2 LCD display and SNMP agent inside

ØProvide Console manage interface (RS232)

ØProvide two fiber interface 1+1 protect（APS）function ,and ALS（Automatic Laser Shutdown/Reduction）function

ØProvide 4 100M line Ethernet channel support mutual negatiate, Ethernet bandwidth is set on base on multiple of 32K

ØProvide one hotline channel for option,

ØProvide two fiber interfaces, one as master, the other as slave, insuring uninterrupted service transmission

ØThe rate of optical port is 155Mbps, transmission range can reach 25KM, 40KM, 60KM, 80KM or 100KM;

ØE1 interface code is HDB3，E1 vibration characteristic conforms to ITU-T G.703、G.823 and G.742;

ØEthernet port supports full/half duplex, 10M/100M auto-ataptable；

ØEthernet port supports VLAN function and has 4devision mode for user selection;

ØEthernet package size support 1916 byte and 4 Ethernet port could be set seperately；

ØHas complete alarm function and can monitor remote device status;

ØSupports E1 loop from remote so as to detect and manage device conveniently;

ØThe combination AC220V and DC-48V for redundant

Parameters

u  Fiber

    Multi-mode Fiber

    50/125um, 62.5/125um,

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

    Single-mode Fiber

    8/125um, 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

u  E1 Interface

    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;

    E1 Impedance:             75Ω (unbalance), 120Ω (balance);

    Jitter tolerance:            In accord with protocol G.742 and G.823

    Allowed Attenuation:   0~6dBm

u Ethernet interface (10/100M)

    Interface rate:              10/100 Mbps, half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

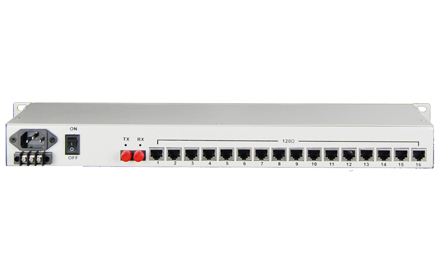

   Product size:   19 inch 1U   485 X138 X45 mm(WXDXH)

   Simple packaging: 522X198X82mm( WXDXH)

   Piece weight:  3KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)
