Product Description
OVERVIEW
Not only HDMI input, this item support Tuners and HDMI input at the same time, demodulation the tuners signal and encoding the HDMI signal,output RF DVB-T/DVB-C/ATSC/ISDB-T/ DTMB for option. Meanwhile, it delivery unrivaled and reliable video quality with advanced video compression technology, to meet the ever-increasing need of high quality video experiences. Moreover, with its multiplexing module, local programs can be re-multiplexed with external transport stream.
BNT-9581E series can be applied to IPTV system with TS over IP output/input. The device also supports program sources from HD STB, HD camera or playout server, PC and other diversified video source.
FEATURES

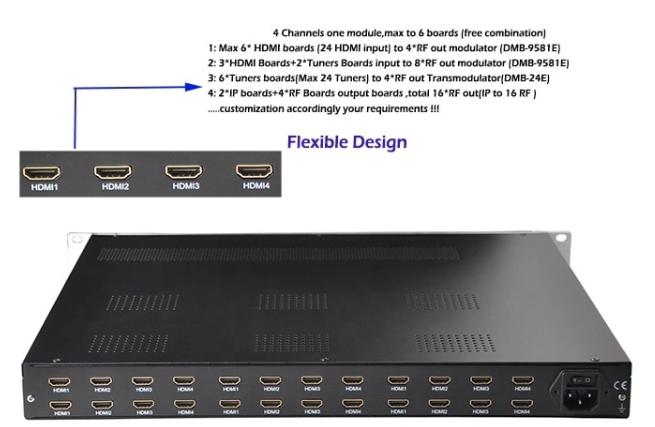

* Input version support HDMI+Tuner mixed input for option: 16 HDMI+8*Tuners
8 HDMI+16 Tuners
The HDMI and Tuners input must be 4 times and max total 24 channels input
* Output: up to 127*SPTS over IP(UDP/RTP)/1*MPTS, 2*ASI(independent), RF out with 4/8*RF DVB-T/DVB-C/ATSC-T/ISDB-T/Tb/DTMB for option.
* With superior shoulders and modulation quality MER ≥ 40dB
* Support lower power consumption and high reliability with MTBF(Mean Time Between Failure) ≥50000 Hours
* Equipped with multiplexing module, able to multiplex local programs with external TS, IP
* Cut-off memory capability
* Management of support web browser via Ethernet interface
* Support software upgrading by Ethernet interface
VIDEO SPECIFICATIONS
Video compression: MPEG-4 AVC/H.264/H.265 HEVC option Video inputs: 4/8/12/16/20/24*HDMI for option The Input Resolution: 1920×1080@60P, 1920×1080@60i, 1920×1080@50P, 1920×1080@50i, 1280×720@60P, 1280×720@50P, 720×576@50i, 720×480@60i The Output Resolution: 1920×1080@30P, 1920×1080@25P, 280×720@30P, 1280×720@25P, 720×576@25P,720×480@30P Bit-rate: 1 ~ 13Mbps, CBR/VBR GOP Structure: IPPPP (P Frame for adjustment, without B Frame)
384kbps Audio Gain: 0-255
INPUTS AND OUTPUTS
ASI Input Channel: 2*ASI(Independent) Interface: BNC, 75 ohm Signal Level 200-800mVp-p Packet Length 188 bytes Maximum bit-rate per port ≤100Mbps Packet mode: Byte mode ASI Output 2 * ASI one for backup (Select from modulation Channels or MPTS channel) 75Ω, BNC, 188Bytes MPEG-2 TS over DVB-ASI (EN 50083-9) IP Output RJ45 Port,100/1000M GigE Port Simultaneous output with N*SPTS (N==HDMI channels) and 1*MPTS (modulation or MPTS channels) MPEG-2 TS over RTP,UDP unicast and multicast streaming Configurable packet size(2-7)x188Bytes Filter Null Packet Total Bitrate: 1-200Mbps (Should be More than Encoding bitrate)
