Product Description
Product Description

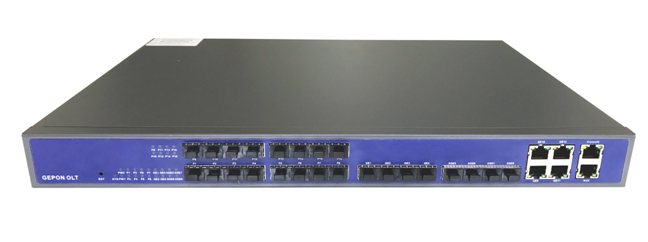

BNT-OLT-16EPON, which provides 16 EPON ports, 12 uplink ports (4*GE copper RJ45 ethernet
ports, 4*SFP(GE) and 4*SFP+(10GE) ) , it has high reliability, highly dense
broadband access and robust switching and routing abilities, is a new
generation of broadband and multiservice access OLT devices oriented towards
the service-integrated network.
BNT-OLT-16EPON integrates with network security,
supports data, voice and video, and provides continuous forwarding, graceful
restarting and ring protection, improving the work efficiency and securing the
maximum running time.
Independent 1U chassis equipment with 16
PON ports, each port supports up to 64 ONUs, the whole device supports up to 1024
ONUs. Small size and high density OLT, easy to install, convenient, flexible
and easy to deploy high performance broadband access network. It is appropriate
to be deployed in compact room environment. The OLTs can also be used for
“Triple-Play” applications.
Features
▪ 1U 19 inch standard box EPON OLT with 16 PON ports
▪ Compliant with IEEE802.3ah YD/T1475-2006—EPON and
China Telecom EPON Technical Requirements
▪ L3 function, support static route、dynamic route
RIP v1/v2 and OSPF
▪ QoS based on port, VID, TOS and MAC address(16K Mac
address)
▪ Supporting VLAN tag/Un-tag, VLAN transparent
transmission, QinQ
▪ Support MLD v1/v2 snooping (Multicast Listener
Discovery snooping), supporting 256 IP Multicast Groups
▪ Support IPv6, DN, support ACL based on source IPv6
address, destination IPv6 address, L4 port, protocol type, etc
▪ Support port-based rate limitation and bandwidth
control
▪ Support data encryption, multi-cast, port VLAN,
separation, RSTP, etc
▪ Support Dynamic Bandwidth Allocation (DBA)
▪ Support ONU auto-discovery/link detection/remote
upgrade of software
▪ Support various LLID configuration and single LLID
configuration
▪ Different user and different service could provide
different QoS by means of different LLID channels
▪ Specialized design for system breakdown prevention
to maintain stable system
▪ Support SNMP, telnet, CLI, OAM and Web management
▪ Support power-off alarm function, easy for link
problem detection
▪ Support broadcasting storm resistance function
▪ Firewall function
▪ Support remote software upgrade
▪ Two power supply redundancy design

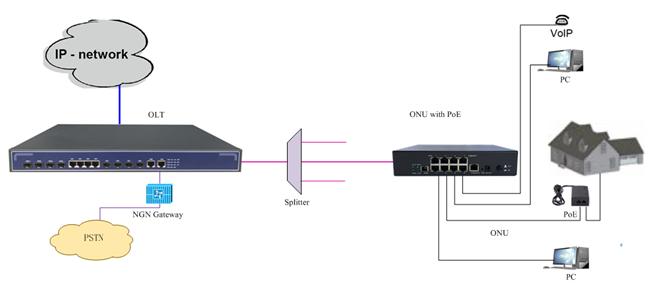

Application Chart
Technical parameters
| Items |
Unit |
Specifications |
| PON standard. |
|
EPON
IEEE802.3ah |
| PON interface |
|
16*EPON SFP Ports (PX20+),
Receiving sensitivity: ≤-30dBm(Saturation
Optical -6dBm). Power, Transmitting optical power: +2～+7dBm Transmission distance: 20KM. Max splitting ratio1:64 |
| Speed |
Upstream 1.25G Downstream 1.25G |
|
| Wavelength |
nm |
Tx1310,
Rx 1490 |
| Uplink |
GE |
4*copper ethernet ports 10/100/1000M auto-negotiation |
| SFP GE |
4*SFP(GE) |
|
| SFP 10GE |
4*SFP+ (10GE) |
|
| Layer 3 |
|
Support static route、dynamic route RIP v1/v2
and OSPF |
| Management
Ports |
|
1*10/100BASE-T out-band port, 1*CONSOLE port |
| Management
Mode |
|
SNMP、Telnet、CLI、WEB、SSH v1/v2 |
| Backplane |
Gbps |
128 |
| MAC
table |
K |
16 |
| Operating
condition |
℃ |
Operating
temp: -5 ~ +55 |
| Storing
condition |
℃ |
Storing
temp: -40 ~ +85 |
| Humidity |
% |
5~90(non-condensing) |
| Power
consumption |
W |
≤95 |
| Dimension |
mm |
442mm×320mm×44mm（L×W×H） |
| Net
weight |
Kg |
6.5Kg |
