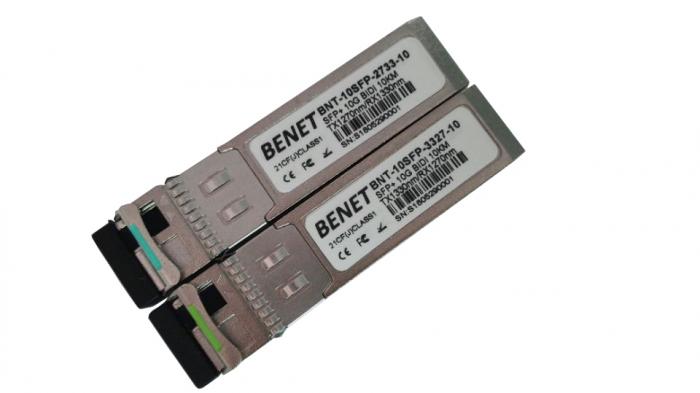

Name:10G BIDI SFP+

Product Description

Description

10G BIDI SFP+ series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-ER/EW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.

10G BIDI SFP+ module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1330nm;.The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.The receiver section consists of a APD photodiode integrated with a TIA.


 Features

 Supports 9.95Gb/s to 10.3Gb/s data rates

 Simplex LC Connector Bi-Directional SFP+ Optical Transceiver

 Single 3.3V Supply

 Up to 50km on 9/125um SMF

 A:1270nm DFB Laser transmitter,1330nm APD receiver B:1330nm DFB Laser transmitter,1270nm APD receiver

 SFP+ MSA SFF-8431 Compliant

 Digital Diagnostic SFF-8472 Compliant

 RoHS compliant and Lead Free

 Operating case temperature: Standard: 0 ~ 70 °C


 Applications

 10GBASE-ER at 10.3125Gbps

 10GBASE-EW at 9.953Gbps

 Other Optical Links


Product Information

NO. Data Rate Distance LD PD DDMI
1 10Gbps 10km DFB PIN Y
2 10Gbps 20km DFB PIN  Y
3 10Gbps  40km  DFB   PIN   Y
4 10Gbps 50km DFB  APD Y
