Name:BNT-05GP

Product Description

BNT-05GP an Industrial 5-port Fast Ethernet Switch POE, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 4-port 10/100/1000BASE-TX POE interfaces delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 85℃.

Interface

• 5-port 10/100/1000Base-Tx   RJ-45  with   auto  negotiation  and   auto-MDI/ MDI-X  function

• 5 port with 802.3af/at POE+ (port 1 to port 4)

Industrial Conformance

• 12V to 52V DC, redundant  power  input

• 48-57VDC (POE)

• -40℃ to 85℃ operating temperature

• IP40 metal case

• Supports 6KV DC Ethernet ESD protection

• Supports 6KV DC EFT protection for power line

• Free Fall, Shock and Vibration Stability

• DIN-rail and wall-mountable hardware design

Layer 2 Features

• Complies with the IEEE 802.3, IEEE 802.3u   Fast  Ethernet standard

• Auto-MDI / MDI-X detection

• Store-and-Forward Switching Architecture

• Features Store-and-Forward mode

• Automatic (half-duplex) and (full-duplex)

• Supports packet size of up to 1522bytes

• Automatic source address learning and aging


Specifications

Product                                                 BNT-05GP

10/100/1000Base-TX Port

5 port RJ-45 auto-MDI / MDI-X

POE port

4 port with IEEE802.3af/at POE+ function ( port 1 to port 4)

Performance Specification

Bandwidth: 20 Gbps
Packet Buffer Memory:512K
Packet Forwarding Rate:148800pps/port
MAC Address Table: 2 K

Installation

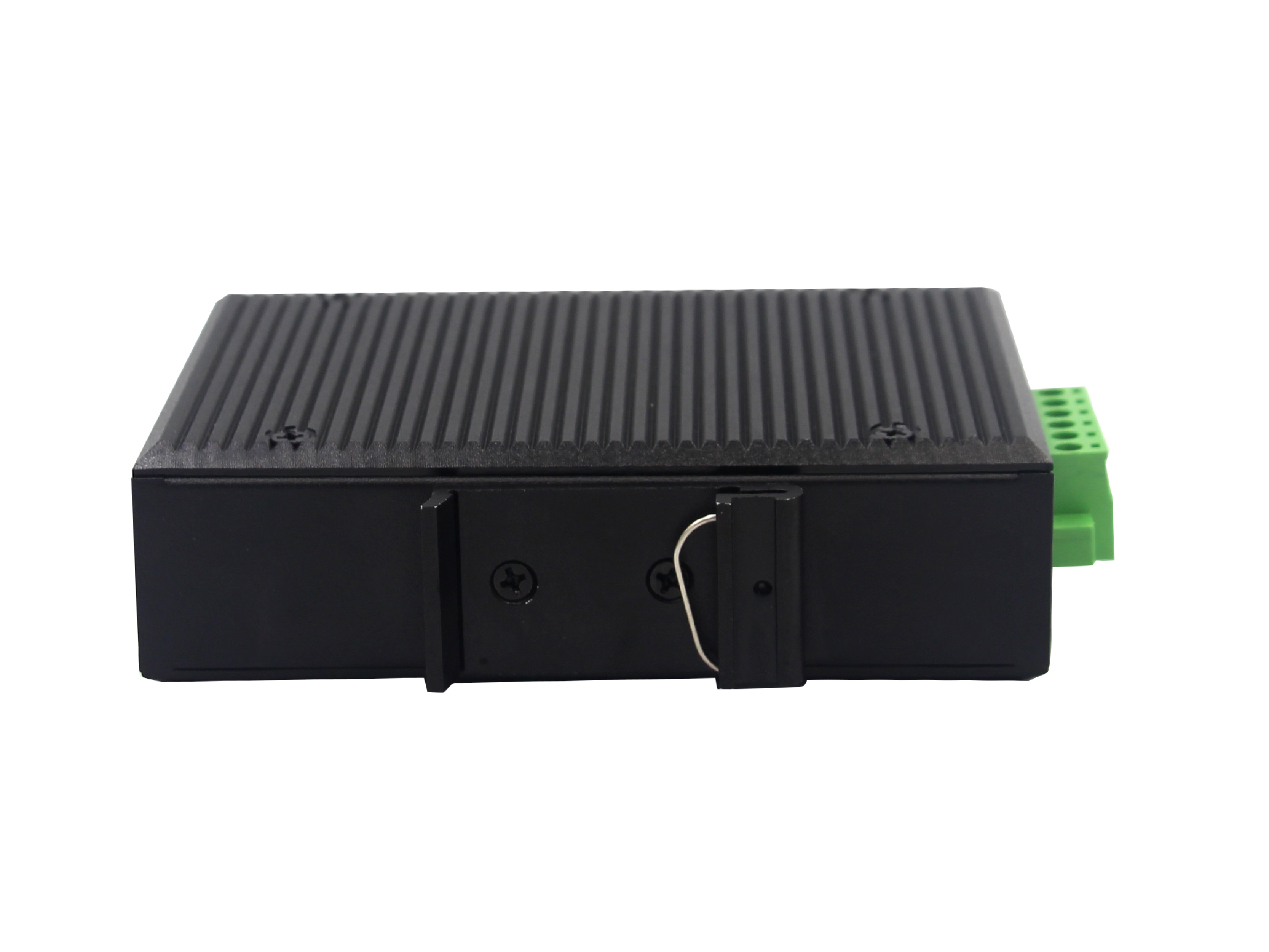

DIN rail kit and wall mount ear

Maximum Frame Size

1522bytes packet size

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

IP40 slim type metal case



LED Indicator

Power:  Red

Ethernet: Yellow

POE: Green

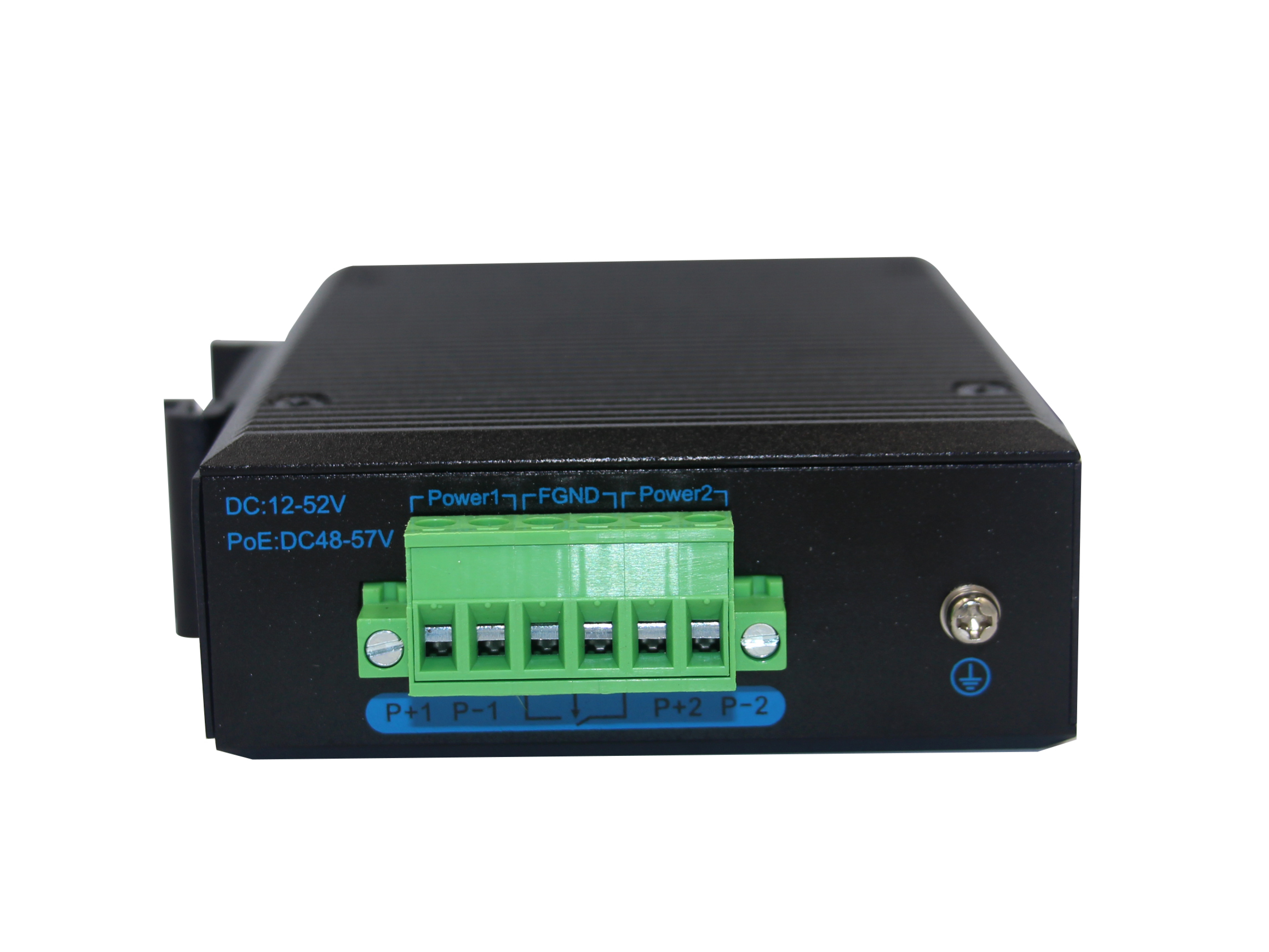

Power Input

12 to 52V DC redundant power

POE :48-57V DC

Power Consumption

3 watts / 10BTU (maximum)

Protection

ESD (Ethernet): 6KVDC

Surge (Power): 6KVDC





Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3z 100Base-X;

IEEE802.3ab 1000Base-T;

IEEE802.3x;

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤10meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)

POE

POE standard :   IEEE802.3af/at

PoE ports:          1-8 port support PoE

Power Output:   15.4 watts (IEEE 802.3af)

Max. 30 watts (IEEE 802.3at)

Power Pin Assignment:1/2+;3/6-

Power Type:       End-span( Mid-span optional)

Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A

EMS:

 IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)

 IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)

 IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

 IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

 IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

 IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Certification

CE,RoHS,FCC

Dimensions (W x D x H)

118 x 86 x 39 mm

Weight

Product Weight: 0.36KG

Packing Weight: 0.46KG

Working Environment



Working temperature: -40~85℃ ;

Storage temperature: -40~85℃

 Relative Humidity: 5%~95 %( no condensation)

Warranty

5-years

Dimensions
