Product Description
BNT-08GP an Industrial 8-port Fast Ethernet Switch POE, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100/1000BASE-TX POE interfaces delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 85℃.
Interface
• 8-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function
• 8 port with 802.3af/at POE+ (port 1 to port 8)
Industrial Conformance
• 12V to 52V DC, redundant power input
• 48-57VDC (POE)
• -40℃ to 85℃ operating temperature
• IP40 metal case
• Supports 6KV DC Ethernet ESD protection
• Supports 6KV DC EFT protection for power line
• Free Fall, Shock and Vibration Stability

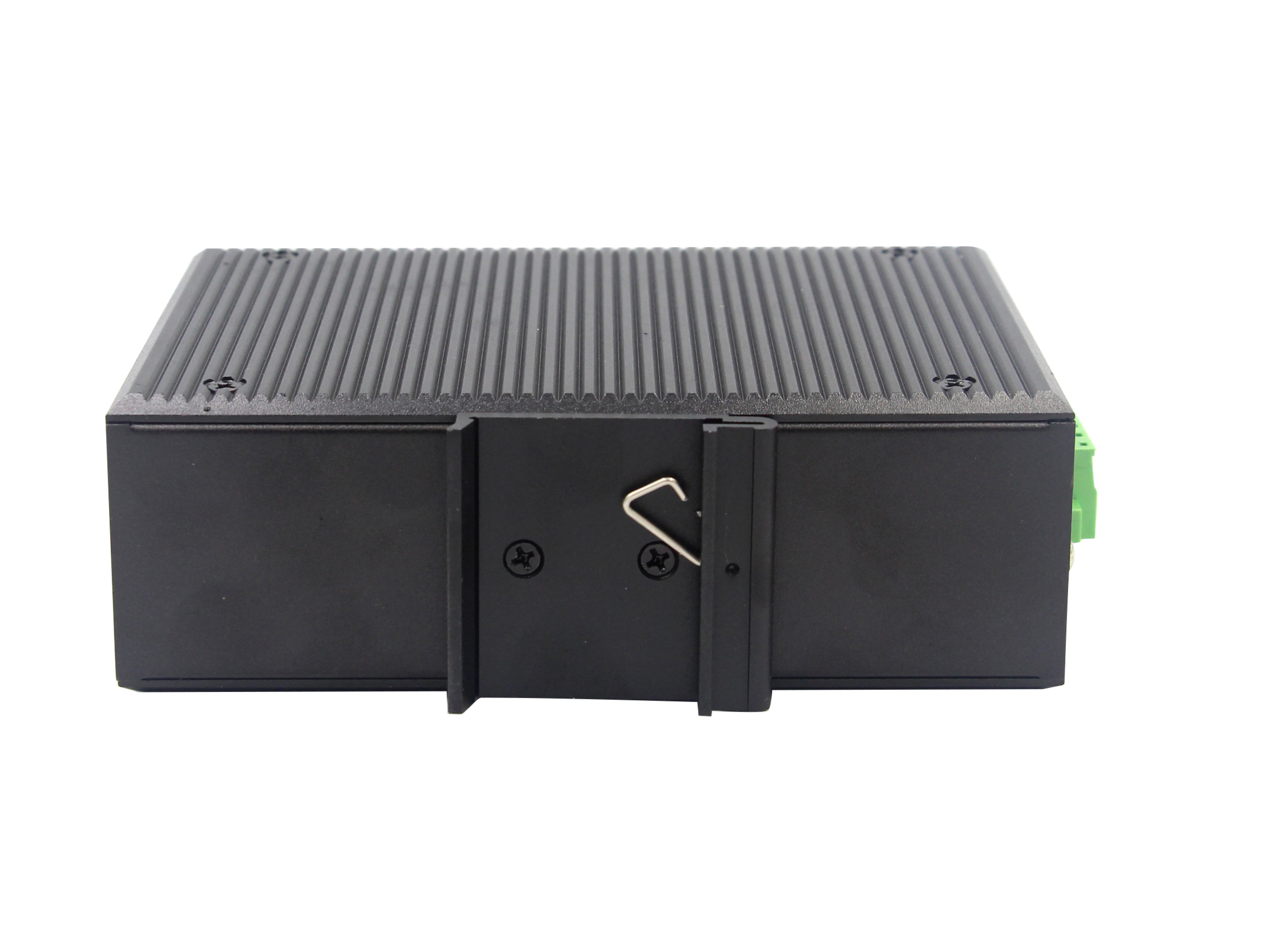

• DIN-rail and wall-mountable hardware design
Layer 2 Features
• Complies with the IEEE 802.3, IEEE 802.3u Fast Ethernet standard
• Auto-MDI / MDI-X detection
• Store-and-Forward Switching Architecture
• Features Store-and-Forward mode
• Automatic (half-duplex) and (full-duplex)
• Supports packet size of up to 1522bytes
• Automatic source address learning and aging
Specifications
Product BNT-08GP |
|
10/100/1000Base-TX Port |
8 port RJ-45 auto-MDI / MDI-X |
POE port |
8 port with IEEE802.3af/at POE+ function ( port 1 to port 8) |
Performance Specification |
Bandwidth: 20 Gbps |
Installation |
DIN rail kit and wall mount ear |
Maximum Frame Size |
1522bytes packet size |
Flow Control |
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
Enclosure |
IP40 slim type metal case |
LED Indicator |
Power: Red Ethernet: Yellow POE: Green |
Power Input |
12 to 52V DC redundant power POE :48-57V DC |
Power Consumption |
3 watts / 10BTU (maximum) |
Protection |
ESD (Ethernet): 6KVDC Surge (Power): 6KVDC |
Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3z 100Base-X; IEEE802.3ab 1000Base-T; IEEE802.3x; |
Network cables |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤10meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
POE |
POE standard : IEEE802.3af/at PoE ports: 1-8 port support PoE Power Output: 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) Power Pin Assignment:1/2+;3/6- Power Type: End-span( Mid-span optional) |
Industry Standard |
FCC CFR47 Part 15,EN55022/CISPR22, Class A EMS: IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
Certification |
CE,RoHS,FCC |
Dimensions (W x D x H) |
143 x 101 x 44 mm |
Weight |
Product Weight: 0.52KG Packing Weight: 0.62KG |
Working Environment
|
Working temperature: -40～85℃ ; Storage temperature: -40～85℃ Relative Humidity: 5%~95 %( no condensation) |
Warranty |
5-years |
Dimensions
